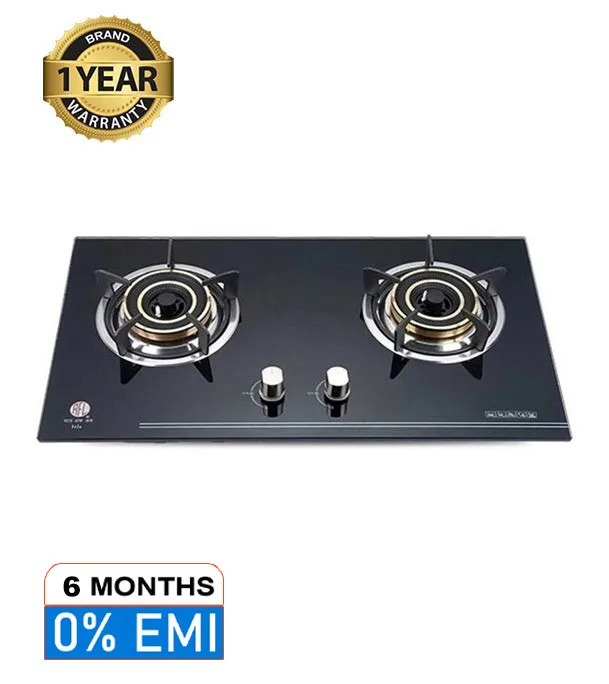

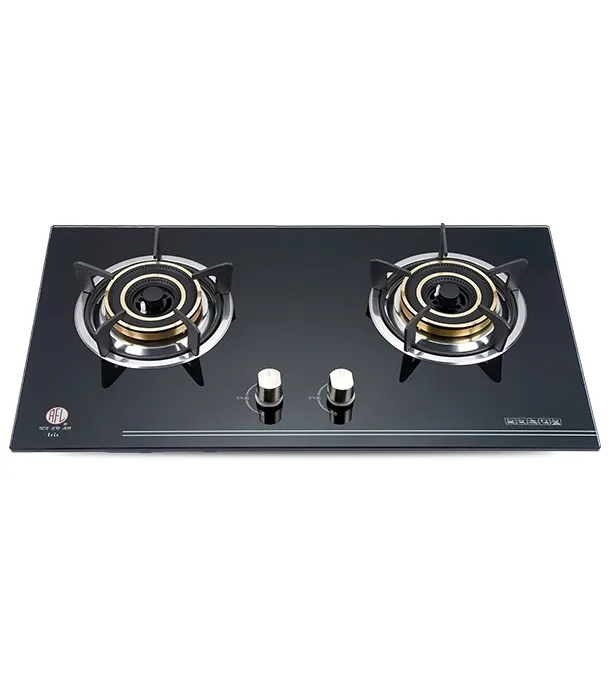

RFL Double Built In Glass Hob Iris (Cylinder Gas)

Description

Name RFL Double Built In Gls LPG Hob Iris
Item code 868427
Brand RFL Gas Stove
Top panel Dimension: L-732 x W-410 x Thick-8.10 mm
Weight: 4.80 kg
Materials: Glass
Color: Black
Body Dimension: L-642 x W-347 x H-55 x Thick-0.65 mm
Weight: 930 gm
Materials: MS Sheet
Color: Black
Ignition Dimension: L-107mm x H-86mm
Weight: 154 gm
Materials: Aluminium, Brass, MS
Color: Gray and Gold color
Barner 100 mm

Dimension: Out dia-100mm x L-200mm x H-70mm
Weight: 815 gm
Materials: Ci
Color: Black
Big stand

Dimension: out dia-538mm x H-57mm
Weight: 530 gm
Materials: CI
Color: Black
Small Stand Dimension: Circle dia-152 mm x Rod thickness-4 mm
Weight: 95 gm
Materials: MS
Color: Black
Barner Cap 130 mm

Dimension: Out dia 130mm
Weight: 255 gm
Materials: Brass
Color: Gold color and Black
Barner Cap 30 mm

Dimension: Out dia-30 mm
Weight: 27gm
Materials: Brass
Color: Black
Cap ring

Dimension: Out dia-130mm
Weight: 136 gm
Materials: Brass
Color: Gold
Pipe Dimension: L-290mm x W-100mm X Out dia-11.55 mm
Weight: 86 gm
Materials: MS
Color: Gold color
Tray Dimension: L-225mm x Inner dia-101mm
Weight: 115 gm
Materials: SS Sheet
Color: SS color
Knob Dimension: Out dia-35mm x H-26mm
Weight: 28 gm
Materials: SS
Color: SS color
Knob washer

Dimension: Out dia-36 mm
Weight: 7 gm
Materials: Aluminium
Color: Gray
Knob washer rubber

Dimension: Out dia-32 mm
Weight: 2 gm
Materials: Rubber
Color: White
Leg Dimension: Height-27mm
Weight: 5 gm
Materials: Plastic
Color: Black
Burner ring

Dimension: Out dia-55.50 mm
Weight: 5 gm
Materials: MS
Color: Black
Ceramic Dimension: H-42mm, Out dia-6mm
Weight: 5 gm
Materials: Ceramic
Color: White
Battery Box

Dimension: L-84mm x W-41mm
Weight: 22 gm
Materials: Plastic
Color: Black
Circuit Box

Dimension: L-62mm x W-44mm
Weight: 100 gm
Materials: Plastic
Color: Black
Ignition Support

Dimension: L-62mm x W-29mm
Weight: 34 gm
Materials: SS Sheet
Color: SS color
Battery Box support

Dimension: L-105 x mm W-70mm x H-50mm
Weight: 20 gm
Materials: SS Sheet
Color: SS color
Circuit Box support

Dimension: L-86mm x W-70mm x H-40 mm
Weight: 17 gm
Materials: SS Sheet
Color: SS color
Net Weight: 10.14 kg
Gross Weight: 12.06 kg (LP)

Warranty: One year service warranty
